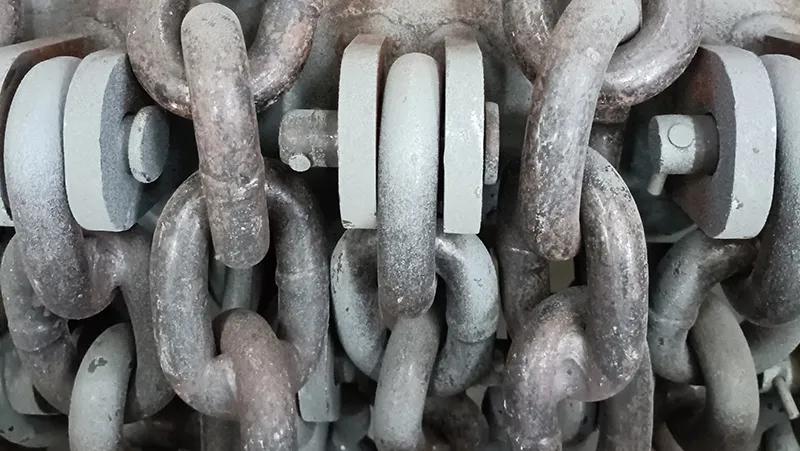

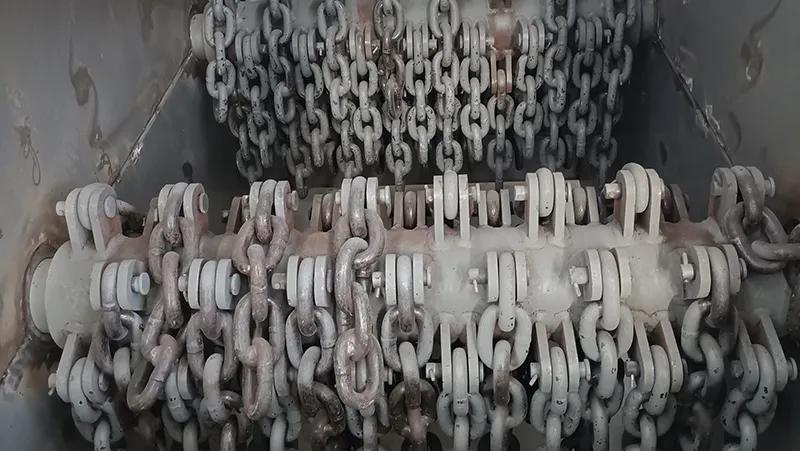

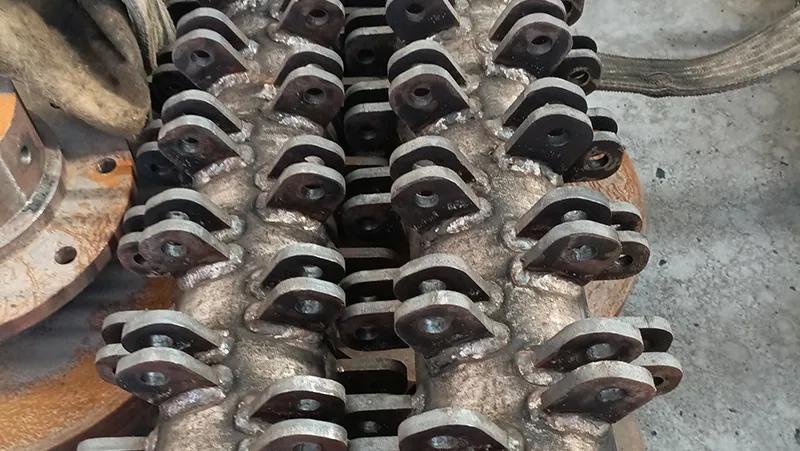

Horizontal Chain Mill Crusher

Developed to tackle the challenge of crushing fertilizers that absorb moisture, the horizontal chain mill offers a smooth and continuous crushing process. Its structure prevents material buildup on the inner walls, ensuring uninterrupted operation. With high efficiency, large production capacity, and simple maintenance, our horizontal chain mill crushers are ideal for processing blocky fertilizers and other medium-hard materials. Its user-friendly design also makes it a versatile tool for improving fertilizer production, overcoming issues that typically hinder crushing in other systems.

SPECIFICATIONS

Model	Production capacity (t/h)	Final size (mm)	Motor
Model	Production capacity (t/h)	Final size (mm)	Model	Power (kW)
WL350	4-5	< 1 70%	Y132M-4	7.5*2
WL500	5-7	< 1 70%	Y160M-4	11*2
WL600	13-16	< 1 70%	Y160L-4	15*2
WL700	19-25	< 1 70%	Y160L-4	15*2
WL800	25-27	< 1 70%	Y200L-4	22*2
WL1000	26-28	< 1 70%	Y250M-6	37*2
WL1050	26-30	< 1 70%	Y250M-6	55*2

FAQ

How to choose the right fertilizer production equipment for my plant?

Choosing the right equipment for your fertilizer production project starts with understanding your production needs. Here are a few key questions that help narrow down the best options:

What type of raw materials are you working with?
Do you aim to produce powdered or granular fertilizer? What specific characteristics should the final product have?
What is the desired output capacity for your production line?
What are the local environmental conditions, such as temperature and material moisture levels?
What heat source will your drying equipment rely on?

Once we have this information, we can recommend the most suitable fertilizer processing equipment and production line for your needs.

Why does the granular fertilizer produced by my production line tend to clump?

Clumping is a common issue in fertilizer production, usually caused by moisture, temperature, and pressure. If the fertilizer you are planning on producing has a high moisture content, it could lead to clumping, which might mean your drying equipment isn’t performing optimally. Similarly, high temperatures can make the granules more prone to sticking together, which is why cooling equipment is often used after the drying process. Lastly, high pressure in the fertilizer production line can increase the surface area of the granules, making them more susceptible to chemical reactions that cause clumping.
