Rotary Drum Spray Dryer Granulator

Efficient granulation and drying are necessary to producing consistent fertilizer granules; our rotary drum spray dryer granulator is designed to combine these processes. By atomizing raw material slurry and spraying it onto a bed of recycled materials, the granulating machine integrates granulation, drying, and screening in one continuous process. Key components include the main and auxiliary drive systems, the drum body, knocking device, support roller system, sealing system, feed/discharge boxes, and the atomizer, all working together to ensure smooth operation and high-quality output.

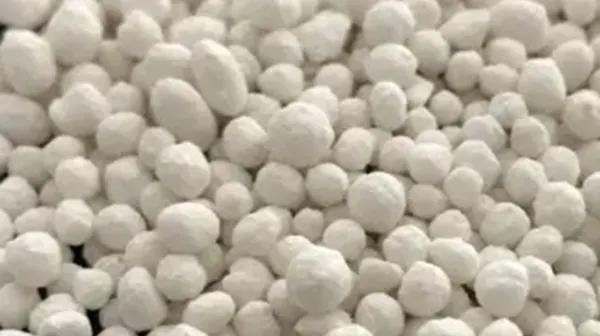

Granular Fertilizers

Features

Tooth-shaped lifting flights inside the drum help form a uniform material curtain. The slurry is sprayed through pneumatic nozzles, evenly coating fine particles within the drum. As the material moves through the drum, heated air from the furnace ensures efficient drying, creating solid and uniform granules.
Larger particles are crushed and returned to the beginning of the process for re-granulation, while fine particles are recycled back through an internal system, optimizing the efficiency of the overall granulation and drying operation.

SPECIFICATIONS

Drum size (m)	Drum				Production capacity (t/h)	Flow direction	Reducer		Motor		Dimensions (L×W×H) (mm)	Weight (t)
Drum size (m)	Inner diameter (mm)	Length (mm)	Inclination (°)	Rev. (r/min)	Production capacity (t/h)	Flow direction	Model	Ratio	Model	Power (kW)	Dimensions (L×W×H) (mm)	Weight (t)
Ø1.2×7	1200	7000	2.5	6.4	5	Upstream	JZQ500	31.50	Y160M-6	7.5	8275×2700×3391	9.0
Ø1.2×1C	1200	10000	2.5	6.4	6		JZQ500	31.50	Y160M-6	7.5	11275×2700×3522	10.0
Ø1.5×12	1500	12000	2.5	4.28	8		ZQ650	31.50	Y180L-6	15	13800×3450×3080	19.0
Ø1.6×14	1600	14000	2.5	5.5	10		ZQ650	23.34	Y200L1-6	18.5	17500×3550×3180	21.0
Ø1.8×14	1800	14000	2.5	5	12		ZQ650	23.34	Y200L1-6	18.5	14680×3460×3711	25.0
Ø2.0×16	2000	16000	2.5	3.38	16		ZL65	40.00	Y200L2-6	22	17580×3968×4400	38.0
Ø2.2×15	2200	15000	2.5	3.0	18		ZL65	40.00	Y200L2-6	37	17090×4460×5250	46.0
Ø2.4×16	2400	16000	2.5	3.17	24		ZL75	40.00	Y280M-6	55	17600×4100×5300	52.0
Ø2.6×24	2600	24000	2.5	3.29	30		ZL100	35.50	Y280M-6	55	26000×4400×7100	81.0
Ø2.8×18	2800	18000	1.8	4.1	35		ZL115	45.00	Y280S-6	75	16868×4280×5410	72.0
Ø3.2×25	3200	25000	2.5	2.6	45		ZSY450	63.00	Y315M-4	132	29500×6500×6300	138.0
Ø3.0×24	3000	24000	1.8	2.65	40		ZSY450	71.00	Y315M-4	132	26615×5760×6269	122.0
Ø3.4×30	3400	30000	2.0	2.5	50-55		ZL130	45.00	Y2-355M2-6	200	30600×6678×6540	170.0
Ø3.6×30	3600	30000	2.0	3.6	90		ZSY500	35.50	Y2-355L-6	250	30600×6890×6540	185.0
Ø4.0×20	4000	20000	2.0	4.2	130		ZSY500	80.00	YKK4003-4	315	22800×7800×7060	192.0

FAQ

What is a Fertilizer Granulator?

Fertilizer granulators are essential machines in the fertilizer manufacturing industry, used to convert organic and compound fertilizers into consistent granule sizes. These granules ensure easier application and better nutrient distribution for crops.

What are the common methods for fertilizer granulation?

In the fertilizer industry, the two most common granulation techniques are dry granulation and wet granulation. The choice between these methods depends on the type of fertilizer and the desired characteristics of the final product, with each offering its own advantages in terms of efficiency and granule quality.
